| Access control & attendance SENTRY.Net™ |
| SENTRY.Net™ network-type access control and attendance system collects authentication information through front-end authentication equipment (non-contact IC card/fingerprint recognition machine), and provides real-time access and attendance control functions. Intensively manage and monitor current state, authentication, passing records of all controlled doors through supervisory computer (remarks: mini-system can be operated without the supervisory computer). |

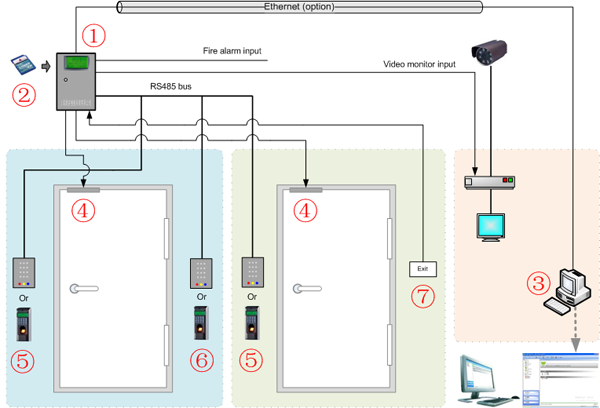

| Basic construction of SENTRY.Net™ |
| ① |
Access controller. Including: main access control panel/Internet controller/power supply/other extended functions, and the power-down data will not lost. It can work independently and connect a net with other access controller and supervisory computers through Internet. |
| ② |
High-capacity SD card storage. It is used for the preservation of authentication record, authentication information and fault warning record, etc. |
| ③ |
Supervisory computer (optional). It can load record information from access controllers by SD card and provide a series of functions, such as record information analysis, journal sheet printing, attendance checking, etc.; it provides remote settings and rapid bookbinding of warrant information for all access controllers which are in the same network segment. It is low coupling, and starts only when needed. It is unnecessary to keep running, and PC is qualified for general work.. |
| ④ |
Electric control lock |
| ⑤ |
Non-contact IC card reader/fingerprint recognizer (entering) |
| ⑥ |
Non-contact IC card reader/fingerprint recognizer (leaving) |
| ⑦ |
Push button of door for exit. |
|
 |
| The characteristics of SENTRY.Net™ |
| I On-line/off-line switch at any time |
| This system is equipped with a 2G high-capacity SD card. We can collect access data by SD card, and it is convenient and flexible without network. Data stored in off-line condition is almost endless. Under the condition with network, we can load data through Internet. |
| II High capacity |
 |
One controller can control 16 doors in maximum. Under the condition of one-way configuration, one controller can control 32 card readers or fingerprint recognizer, 32 electromagnetic locks and 32 push buttons in maximum. |
|
The capacity of register card is 65,535 in maximum. |
|
The daily time section can be set up to 1,440, and the degree of accuracy can reach the minute level. |
|
Access right setting includes 256 levels in maximum. |
|
Holiday (including national holidays and custom holidays) settings are 256 in maximum. |
|
100-year internal permanent calendar. Pre-set week and national holiday for customer's easy use. |
|
It can pass 50,000,000 records and 65,536 alarming records in maximum. |
|
| Ⅲ High speed |
| The certification and comparison are reliable with high-speed. When test the full-load limitation for the 65,535 pieces of card, the certification and comparison speed of effective card is 0.1…0.5 seconds, the certification and comparison speed of ineffective card is less than 0.5 seconds. |
| Ⅳ Flexible settings of certification conditions |
|
Interlock function. We can set interlocking for each door in the same controller, and we can randomly set up the interlocking plans between doors. |
|
Anti-back function. We can set anti-back function for each door in the same controller. Allow nesting settings, and the levels of nesting are not limited. |
|
Multi-certification function. We can set multi-certification controlling time, and the scope is 3…30 seconds. |
|
Settings of delay time for open-door. The scope is 0…255 seconds. |
|
Super entering card. We can register 5 super entering cards in maximum. |
|
Card of door guard. We can register one card of door guard. |
|
| ⅤAttendance function |
| We can appoint one or more authentication terminals as attendance terminal, and fulfill seamless connection of access control and attendance. It is convenient and flexible to set up attendance time, shifts, and holidays. The attendance date will be automatically counted. The printable journal sheet or output is Excel document. |
| Ⅵ A high degree of scalability |
| The minimum controlled unit of SENTRY.Net™ system is one door, and the maximum number of controlled door is only limited by usable IP address space in theory. Users can extend the system to avoid waste caused by estimation fault in initial stage according to actual needs. |
| Ⅶ Flexible data leading-in/leading-out |
| Lead out information in Excel form, and it is convenient for the integration between the user and the third-party system. |
| Ⅷ Fire alarm linkage |
